Force-Conditioned Imitation Learning from
Vision-Only Human Demonstrations via Robot Replay

Highlights

• Recovers time-varying target contact force from vision-only human demonstrations, via robot replay and the robot’s own onboard joint-torque sensing — no wrist force/torque sensor, no instrumentation on the demonstrator.
• A visuomotor policy that jointly predicts a reference pose and a reference wrench at each timestep, trained on this recovered data.
• The predicted wrench serves as a time-varying setpoint for standard admittance control at deployment.
• Raises success from 82.5% (pose-only) to 97.5% on a pasta scooping-and-transfer task, using just five minutes of human demonstration, and generalizes across diffusion, ACT, and flow-matching policies.

Method

Overview

A human demonstrates the task in front of a camera using a handheld tool, whose 6D pose we track. This motion is then replayed on the robot under position control, so it strictly retraces the demonstrated trajectory regardless of contact encountered along the way. While replaying, the robot records its joint torques and, using an estimate of its own dynamics, extracts the external force acting on the tool — recovering force without ever touching the human demonstration itself. We then generate novel camera viewpoints of each replay episode with 3D Gaussian Splatting so the resulting policy is robust to camera placement, and train a diffusion policy on the recovered pose and force trajectories, deploying it in closed loop with its predicted wrench supplied as a time-varying setpoint to an admittance controller.

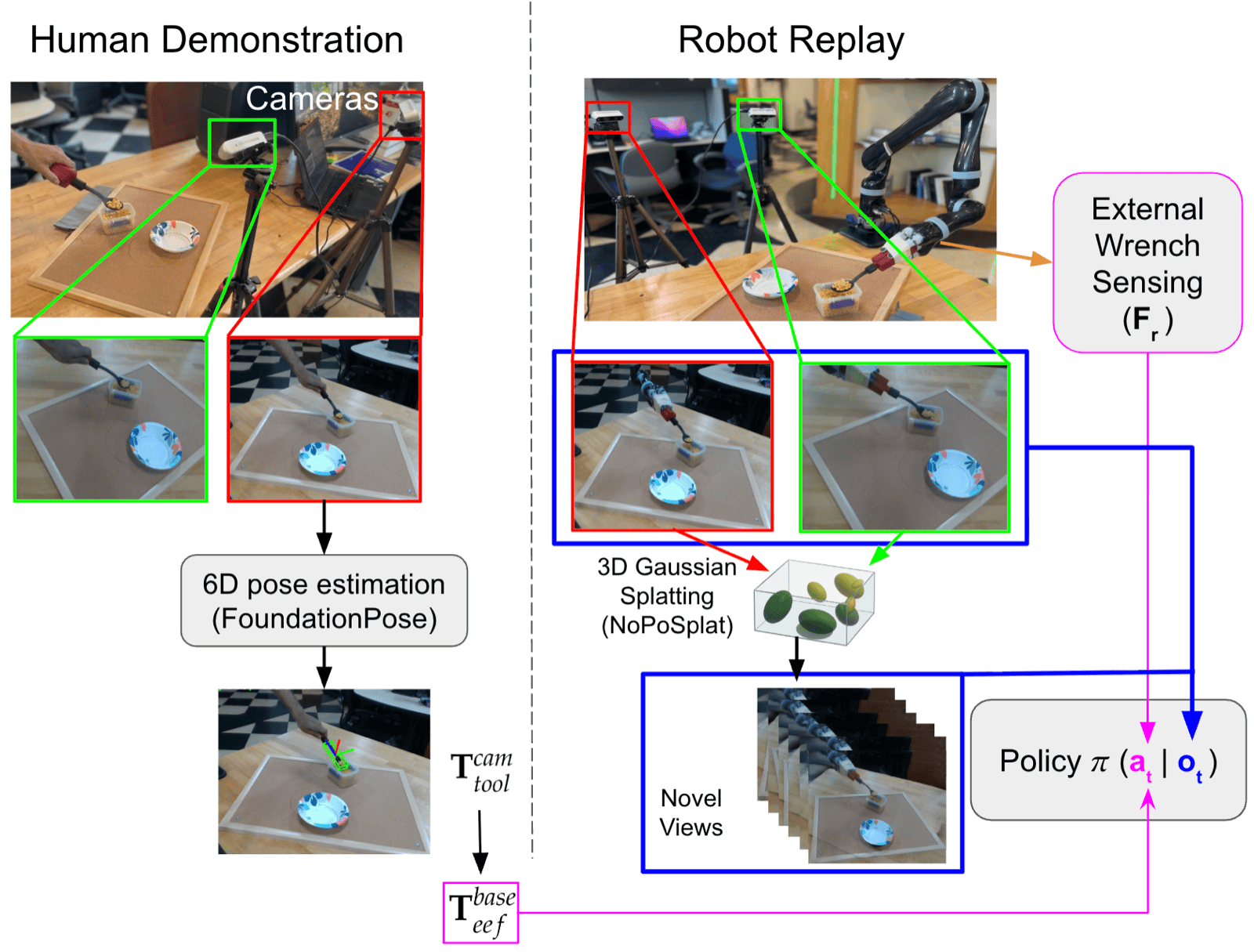

Fig. 2 — System overview. Left: a human demonstrates the task with a handheld tool; FoundationPose recovers its 6D pose. Right: the robot replays the tracked trajectory under position control, recovering the external wrench from joint torque while 3D Gaussian Splatting synthesizes novel training viewpoints.

Problem Formulation

The task is formulated as an MDP. At each timestep t, the observation o_t = {I_τ, X_τ, F^ext_τ} over a short history window combines a single-view RGB image, the robot’s end-effector pose X ∈ SE(3), and the sensed six-dimensional external wrench F^ext = [F_x, F_y, F_z, M_x, M_y, M_z]^⊤, recovered from onboard joint torque. The action a_t = {X^r_τ, F^r_τ} is a future chunk of a reference pose and reference wrench — not commands sent directly to the low-level controller, but the time-varying setpoint supplied to a downstream admittance controller:

Robot Replay & Force Recovery

Human demonstrations are collected with no robot present and no instrumentation on the demonstrator. A human performs the task with a standard spoon in front of a fixed camera; FoundationPose tracks the 6D pose of the spoon at every frame. A fixed ChArUco board provides a common task frame shared between the camera and the robot, so the tracked tool trajectory can be re-expressed in the robot’s base frame and converted to an end-effector trajectory via a fixed tool-to-end-effector transform and inverse kinematics.

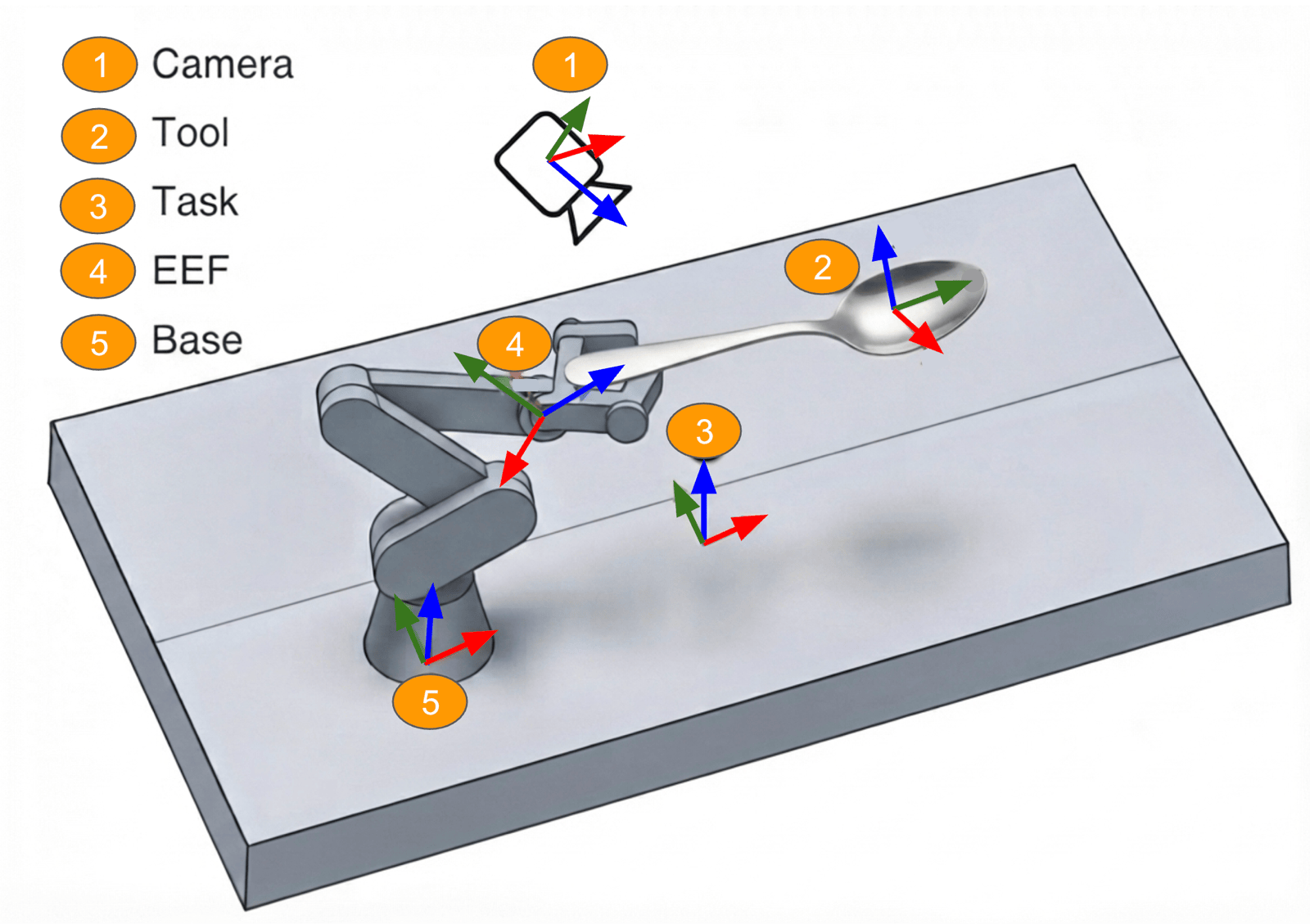

Fig. 3 — Coordinate frames used to carry the tracked tool motion from the human demonstration into the robot’s base frame: camera, tool, task (ChArUco board), end-effector (EEF), and robot base.

The robot then executes this trajectory under strict position control while recording joint torque τ(t). Measured torque reflects both the robot’s own dynamics and any external contact:

We estimate the inertial, Coriolis/centrifugal, and gravitational terms from the robot’s own dynamics model (fit once via ridge-regularized least squares over the replay trajectories, detailed in the paper’s appendix), subtract them from the measured torque, and attribute the residual to external contact, converting it to a wrench via the Jacobian pseudoinverse:

Because training images come directly from the robot replaying the task — rather than from the human demonstration itself — no human-hand or robot-arm segmentation/masking is required at any stage, at training or deployment: the robot is simply present, performing the task, in both.

Novel View Synthesis

The two fixed cameras provide paired stereo images during robot replay, while the deployed policy sees only a single camera. To improve robustness to camera placement without collecting additional demonstrations, we augment the training set with synthetically rendered viewpoints of each replay episode using NoPoSplat, a feed-forward 3D Gaussian Splatting model that reconstructs a scene from a pair of unposed images in a single forward pass. This is valid because the recovered action labels are defined in the robot’s base/task frame, not in any camera’s frame — so real images and novel-view renders at a given timestep share an identical action label, at no additional data-collection cost. Rendering happens once, offline; at deployment the policy receives only the live feed from a single camera.

We compared several feed-forward reconstruction methods before settling on this approach. MASt3R paired with Gaussian Splatting produced blurry, poorly localized reconstructions from only two input views, and vanilla Splatt3r left large holes in the point cloud where the two camera views didn’t overlap; adding gsplat rendering on top of Splatt3r filled in geometry but left visible artifacts near those seams. NoPoSplat gave the cleanest reconstruction of the four, and cropping its output to the largest hole-free rectangle before rescaling to native resolution — the version used in our final pipeline — removed the remaining border artifacts entirely.

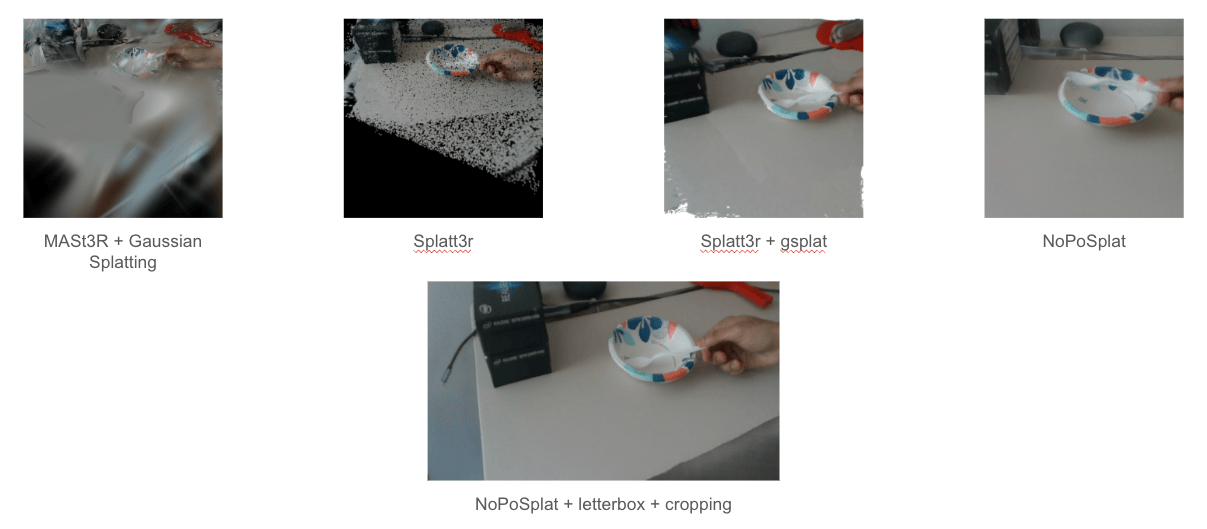

Fig. 5 — Novel-view reconstruction quality across methods on the same input views. NoPoSplat with letterbox removal and cropping (bottom) is used in our final pipeline.

Policy Architecture

We adopt a diffusion-based visuomotor policy, extended to accommodate the wrench modality in both the observation and action space. At each observation step, the camera image passes through a shared, ImageNet-pretrained ResNet-18 encoder; the resulting visual feature is concatenated with proprioceptive pose and sensed wrench and passed through an MLP to form a per-step observation embedding. The current diffusion timestep is separately encoded and combined with the observation embedding to form a conditioning signal, broadcast to every stage of a Conditional U-Net 1D denoising network via FiLM. The network predicts noise at each of K denoising steps and is applied iteratively, ultimately yielding the denoised reference pose and wrench chunk.

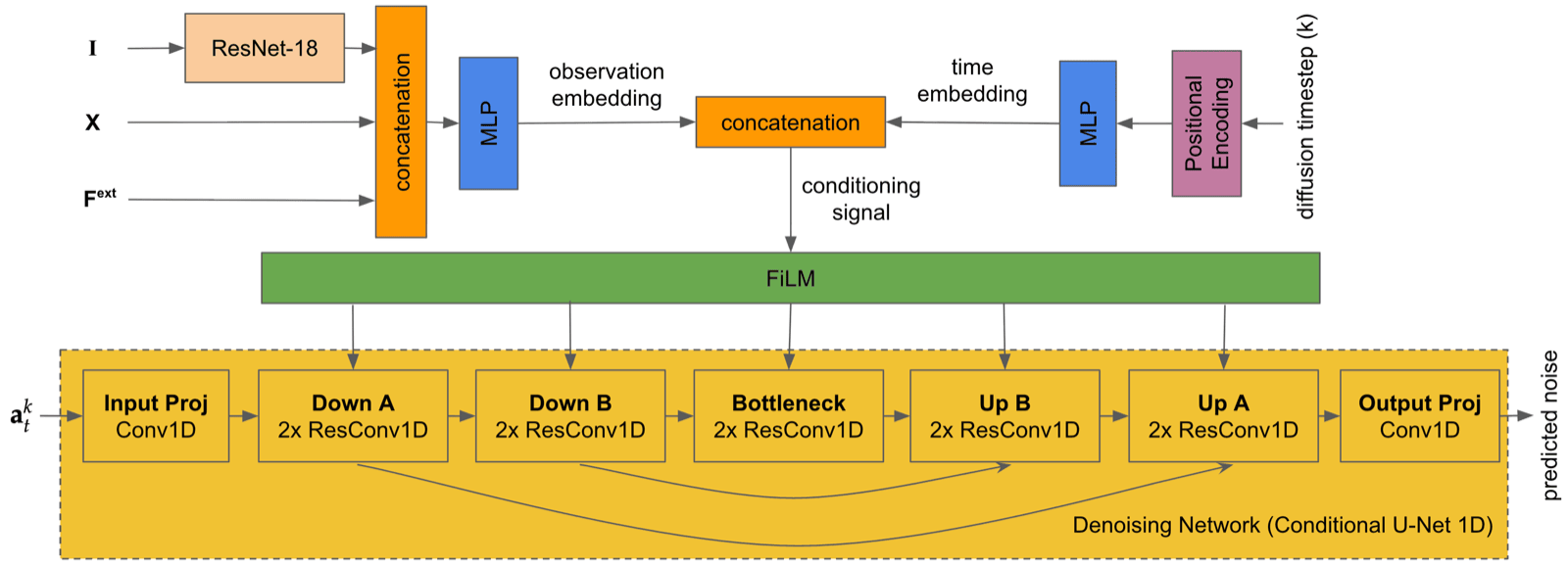

Fig. 6 — Policy architecture. A ResNet-18 image encoder is fused with proprioceptive pose and sensed wrench into an observation embedding, which FiLM-conditions a Conditional U-Net 1D that denoises the reference pose/wrench action chunk.

Training & Deployment

The policy is trained with the standard denoising-diffusion objective for visuomotor policies: a ground-truth action chunk is corrupted with Gaussian noise at a sampled diffusion step, and the network is optimized to predict that noise given the noisy action, the diffusion step, and the current observation. We use an observation horizon T_o = 2 and an action horizon T_a = 16.

At deployment, the policy runs closed loop: at each control step it denoises a reference pose/wrench chunk from Gaussian noise conditioned on the live observation. The robot also reads its current joint torques and recovers the live external wrench with the same dynamics-based subtraction used during replay. The predicted reference pose and wrench, together with this live sensed wrench, are supplied to the admittance controller, whose corrected pose is what is actually sent to the robot’s low-level position controller — so the predicted wrench acts as a continuously updated, learned setpoint rather than a fixed hand-tuned constant.

Limitations

The accuracy of the recovered force is fundamentally bounded by the accuracy of the underlying tool pose tracking: since the entire force-recovery pipeline is driven by replaying a tracked trajectory and attributing the resulting torque residual to external contact, any tracking error propagates directly into the recovered wrench. This makes the approach well suited to tasks where approximate, task-appropriate contact force is sufficient to improve behavior — as in the scooping task studied here — but less suited to applications demanding high-precision force tracking, such as delicate assembly, where today’s vision-based pose-tracking accuracy would translate into unacceptably large force errors. Improving the precision of this pipeline for such applications is left to future work.

Citation

The paper is currently under review at ICRA 2027. If you’d like to reference it in the meantime:

@misc{chowdhury2026forceconditioned,
  title  = {Force-Conditioned Imitation Learning from Vision-Only Human
            Demonstrations via Robot Replay},
  author = {Chowdhury, Sakib and Huang, Raymond and Chen, Vanessa and Guo, Yi},
  note   = {Submitted to ICRA 2027},
  year   = {2026}
}
